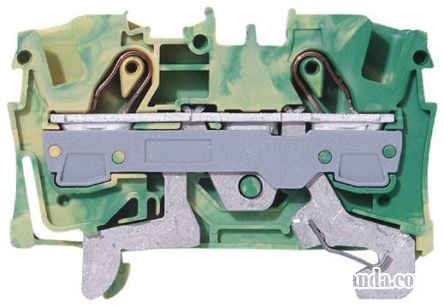

Wago Earth Terminal Block, 2006 Series , 6mm², 800 V, 41A, Push In Termination, Green/Yellow
Product Details
TOPJOB®S series 2-conductor, 6 mm2 V/J terminal blocks
Terminal blocks for TS 35 DIN Rails use CAGE CLAMP® technology and are 30% smaller than standard terminal blocks.
Features and Benefits
• 2 Conductors
• Direct plug-in of rigid and flexible conductors with end tips, no tools required
• Simple and quick bridging and test system
• Easy and quick marking/labelling, using click-on markers on the central strip of the terminal block
| Colour: | green / yellow |
| Rated section: | 6 mm2 (10 mm2) |
| Current: | 41 A |
| Voltage: | 800 V |
| Number of conductors: | 2 |
| Width of terminal: | 7.5 mm |
| Dimensions: | L 57.5 x H 33 mm |
